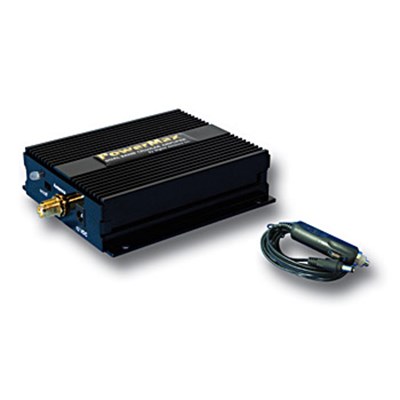

PowerMax DA4000 3 Watt Dual Band Cellular Amplifier DA4000

More - Cell Phone Accessories | Cell Phone Accessories | Cell Phone Antennas and Signal Boosters

PowerMax DA4000 3 Watt Dual Band Cellular Amplifier DA4000 Details:

Digital Antenna’s PowerMax^TM 3 watt Dual Band Cellular Amplifier improves communication by bringing maximum power to all bands of your cell phone. This bi-directional amplifier features Dynamic Variable Gain Control to regulate the amplifier’s output to any cell carrier’s tower. This patent pending technology allows clean and clear functioning of the cell phone, whether under the tower or 30 miles away without power overloading or saturation. Combine the DA4000 with any high quality anntenna and increase the gain of your cellular phone up to 30dB.

Stay Connected
A superior signal reach booster, the DA4000 provides excellent amplification of transmit and receive signals while greatly enhancing range and system access, adding up to 30 – 50 miles or more of extended coverage. This translates into fewer dropped calls, clearer connections and stronger signals.

The DA4000 can be used with digital cellular phones that operate using CDMA, TDMA, PCS, GSM 850, GSM 1900 and AMPS. Can be used with tri-mode phones. Meets IS 95, IS 98, IS 2000 and IS 136 network standards. DA4000 is the only model approved for pi/4QPSK standard.

For Land and Sea
Easy installation for boat, vehicle, RV, home or office. Connects to most existing hands free kits and hand-held cellular phones. The DA4000 offers superior performance and outstanding range, unequaled in the industry. The latest technological innovations designed, engineered and manufactured by Digital Antennas in the USA.

The DA4000 is the only amplifier FCC approved to amplify all cell carriers in the US. Nextel users, see the DA4000n

Benefits

Boosts low-power digital cell phone up to 500%
Increases coverage – up to 50 miles or more
Improves call reception
Reduces dropped calls and signal fades
Extends the life of your cell phone battery by using less battery power
Enhances data connections for better Internet, fax and text messaging
Easy connection to phone and installation for boat, vehicle, RV, home or office

Specifications

FCC approved, FCC ID: PZODA4000
Industry Canada approved, IC ID: 4260A-DA4000
Amplifier Dimensions: 4.5" l x 4.0" w x 1.25" h (114mm x 102mm x 32mm)
Weight: 11.5 oz (.345 kg)
Power Cord Length: 76" (193 cm)
Power Cord Termination: Fused cigarette lighter (from 13.5 vdc power source)
Internal Fuse: 3A
Frequency:
Uplink: 824-849 MHz and 1850-1910 MHz
Downlink: 869-895 MHz and 1930-1990 MHz
Impedance: 50 ohms
Dynamic Variable Gain: -5 to + 10 dB (based upon tower request)
Max Input Power : 0.6w
Max Output Power: 3W (824-849 MHz), 2W (1850-1910 MHz)
RF Connections:
Antenna Port: Mini-UHF Female
Phone Port: Mini-UHF Female
DC Power: Coaxial ID = 2.1mm, OD = 5.5mm (center positive)
Indicator: Green LED indicating power on
Power Switch: Slide switch toward LED = ON

Made to use with cellular systems: CDMA, TDMA, PCS, GSM 850, and GSM 1900. Compatible with dual band and tri-mode phones. Use an adapter cable to connect cell phone to amplifier.

Part Number: DA4000
Warranty: 1 Year
Manufacturer: Digital Antenna
